NC State University researchers have created a novel metallic gel with electrical conductivity for use in industrial 3D printers. The innovative printing substance not only conducts electricity, but also responds to heat as it dries, allowing for printing in a fourth dimension—time. Matter has released a study describing the usage of this conductive gel in 3D and 4D printing.
Learning to print metal using metallic gel
The advent of metal 3D printing using metallic gel has unleashed a flood of creative potential. Designers now have a much simpler time making and testing prototypes of their goods, artists may make their own moulds, and teachers can construct models and dioramas.
However, plastic is the only material that can be 3D printed using the simple devices used at home. 3D printing with metallic gel is possible, but requires a lot more work. The novel metallic gel can be printed at room temperature using standard printing nozzles, according to the work of the study team.
“3D printing has revolutionised manufacturing,” says Michael Dickey, co-corresponding author of the paper and the Camille and Henry Dreyfus Professor of Chemical and Biomolecular Engineering at North Carolina State University. “However, we are unaware of any previous technologies that allowed you to print 3D metal objects at room temperature in a single step,” he adds. This allows for the production of numerous electrical parts and gadgets.
Making the gel begins with a solution of copper particles on the micron scale suspended in water. A metallic gel “network” is formed in the aqueous solution when a little volume of liquid metal indium-gallium alloy is added and thoroughly mixed with the copper particles.
Dickey explains that the metallic gel-like consistency indicates that copper particles are evenly distributed throughout. This accomplishes two goals. First, it implies that the particles in the network are linked together to create electrical channels. Second, it prevents copper particles from precipitating out of the printing solution.
Also read: Stroke Patients Get a new 3D Printed Hand
Metal Spider demonstrates the power of 4D printing
Due to its metal-particles-in-suspension design, the new metallic gel has unique capabilities that may be utilized in printing more creative structures.
According to their recent publication, scientists have discovered that heating a gel-printed item as it dries causes considerable internal tension. Essentially adding time as a fourth dimension to the printing process, the tension created by this faster water evaporation might induce additional changes in form over time.
As Dickey puts it, “this kind of four-dimensional printing” (the standard three dimensions plus time) is another tool that may be utilized to build constructions of the necessary size. “But the conductivity of this material is what really piques our interest.”
The printed items are very conductive because they include as much as 97.5% metal. Not as conductive as copper wire, but copper wire cannot be 3D printed at room temperature. What we’ve come up with is far more conductive than any other printable material. The applications have us really psyched.

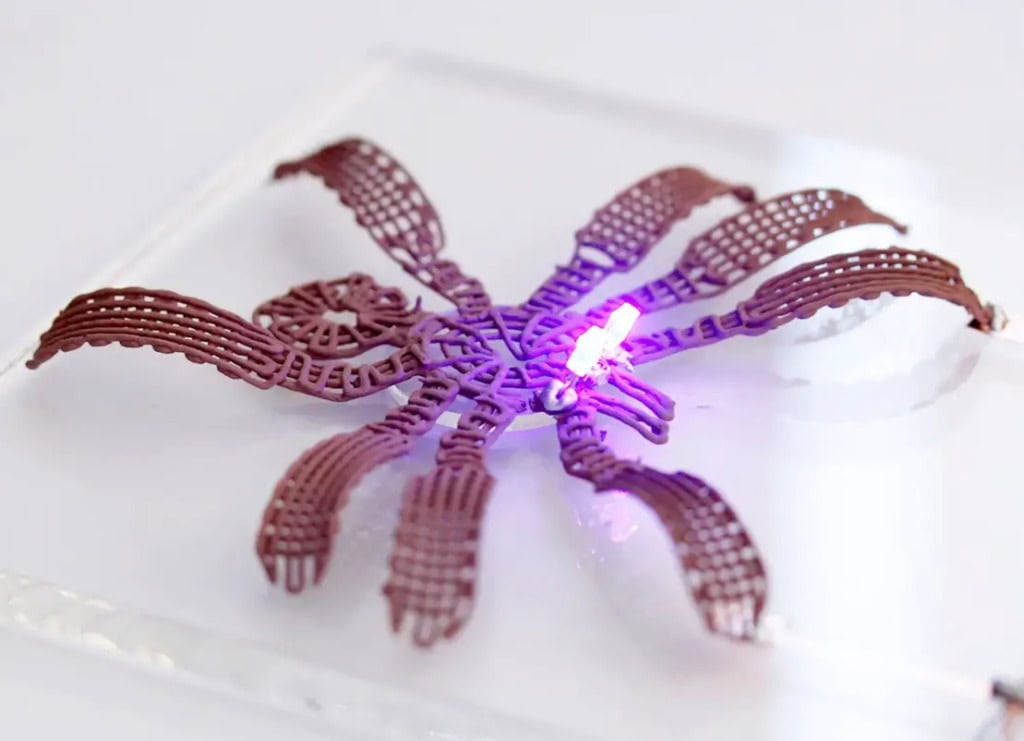

The researchers printed a “conductive spider” out of their metallic gel to prove their point. Researchers watched as the printed spider lifted and assembled itself from a flat surface while it dried in an oven. Two LED “eyes” were illuminated when a 6-volt battery was added to the final structure, demonstrating that the conductivity had been maintained.
Dickey said that the team is eager to discuss future research paths with possible partners in the business world and is ready to collaborate with them to investigate existing opportunities.
With the help of Airbus, the business was able to industrialize the AM method for serial production of antenna clusters, leading to a €3.8 million contract for additive manufacturing of these satellite components. Along with this, Oerlikon AM and ArianeGroup inked a €900,000 contract to 3D print heat exchanger units for the forthcoming Ariane 6 rocket.
Most pleasantly, Executive Chairman Dr. Michael Suess’s genuine enthusiasm for AM’s potential and a practical outlook on expanding the AM ecosystem are highly congruent. His objective is to position the business to take full advantage of the possibilities that will come in the immediate, intermediate, and distant future. Dr. Sven Hicken, the company’s CTO, is spearheading “a $100 million dollar a year R&D program for metal powder, coatings, digitalization, and AM” to ensure that Oerlikon remains the premier additive manufacturing (AM) provider for the aerospace industry and beyond.
Launching into space
It’s no coincidence that these agreements are being announced at the Paris Air Show. This massive trade exhibition has overtaken Farnborough and Berlin as the worldwide premier event for the aerospace sector. Being able to make two announcements of this caliber, Dr. Suess says, “gives us recognition,” especially when you realize that they are based solely on parts manufactured with additive manufacturing. Because of the comparatively low cost of production, AM is expected to play a significant role in the aerospace industry. However, this is qualified by the lengthy time required to check processes.
